EPC Smart Laminated Film is an optoelectronic film made by mixing polarized crystals and polymer mixtures. It can achieve stepless adjustment of light transmittance under the action of voltage. When there is no external voltage applied, the particles in the color-changing layer are arranged in a disordered state, and the entire film appears in a blue and opaque state. When a voltage is applied, the particles in the color-changing layer are orderly arranged under the effect of the external electric field, and the film appears in a transparent state.
EPC Smart Laminated Film is an optoelectronic film made by mixing polarized crystals and polymer mixtures, and it is a smart optoelectronic glass product formed after laminating with glue under high temperature and high pressure.
EPC Smart Laminated Film can be widely applied to building curtain walls, automobile sunroofs, side windows, home appliances, fireplaces, cameras, etc., and can achieve effects such as heat insulation, energy conservation, temperature control, shading, and privacy protection.
The products of our company have passed tests such as constant temperature and humidity tests, power on and off tests at room temperature, power on and off tests at high temperature, high-temperature storage tests, ultraviolet tests, and xenon lamp tests. Graded transmittance adjustment and stepless transmittance adjustment can be achieved by customizing different types of controllers.
Our company can provide EPC Smart Laminated Film in sheets and rolls of any size with a width of less than 1.5 meters. We have a professional packaging and transportation team to safeguard your products. The warranty period is generally one year. You can also purchase an extended warranty service, and we provide 24-hour after-sales service for you.
The research and development and production of the EPC smart dynamic dimming film are all independently completed by our company. We can provide you with personalized customization services and customize the production according to your requirements for the optical properties of the products.
Performance parameters
|
Project |
Mode |
Parameter |
|
Intelligent Dynamic Dimmable Film |
||
|
Visible Light Transmittance |
ON |
50-60% |
|
OFF |
1-2% |
|
|
Haze |
ON |
≤4% |
|
OFF |
30-50% |
|
|
Operating Voltage |
ON |
110V |
|
Response Time |
OFF-ON |
≤2s |
|
ON-OFF |
≤10s |
|
|
Operating Temperature |
/ |
-30℃-90℃ |
|
Energy Consumption |
-30℃-90℃ |
≤1.5w/㎡ |
|
Number of Switching Cycles |
/ |
＞1000000times |
|
UV Blocking Rate |
ON |
99% |
|
OFF |
99.90% |

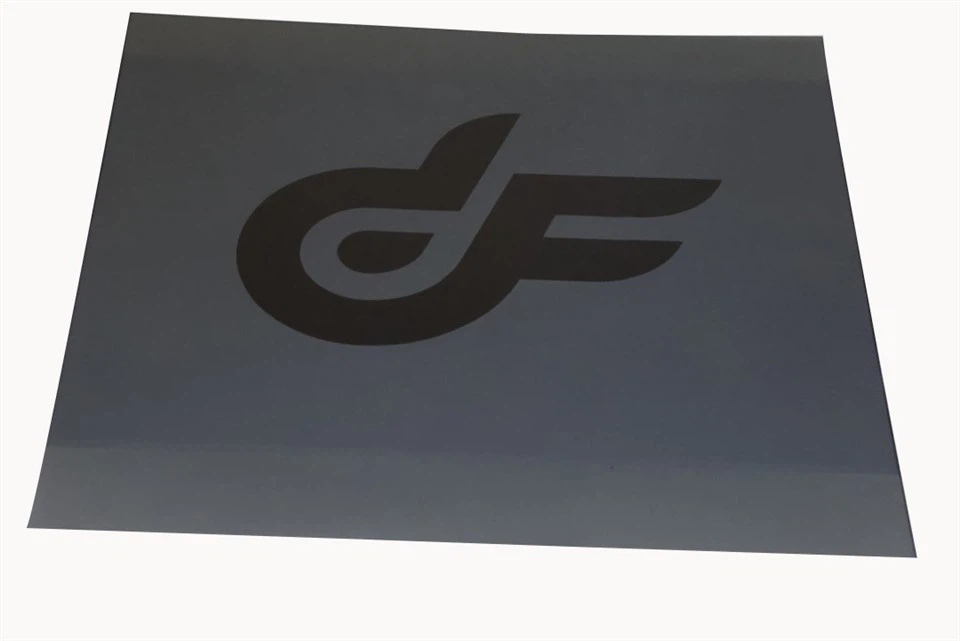

Picture of the EPC Smart Laminated Film when powered off. Transmittance: 2.56%. Haze: 32.82%.
Picture of the EPC Smart Laminated Film when powered on at 26V. Transmittance: 21.75%. Haze: 8.23%.
Picture of the EPC Smart Laminated Film when powered on at 45V. Transmittance: 40.86%. Haze: 4.74%.
Picture of the EPC Smart Laminated Film when powered on at 74V. Transmittance: 60.26%. Haze: 3.57%.
Picture of the EPC Smart Laminated Film when powered on at 110V. Transmittance: 68.03%. Haze: 3.33%.
